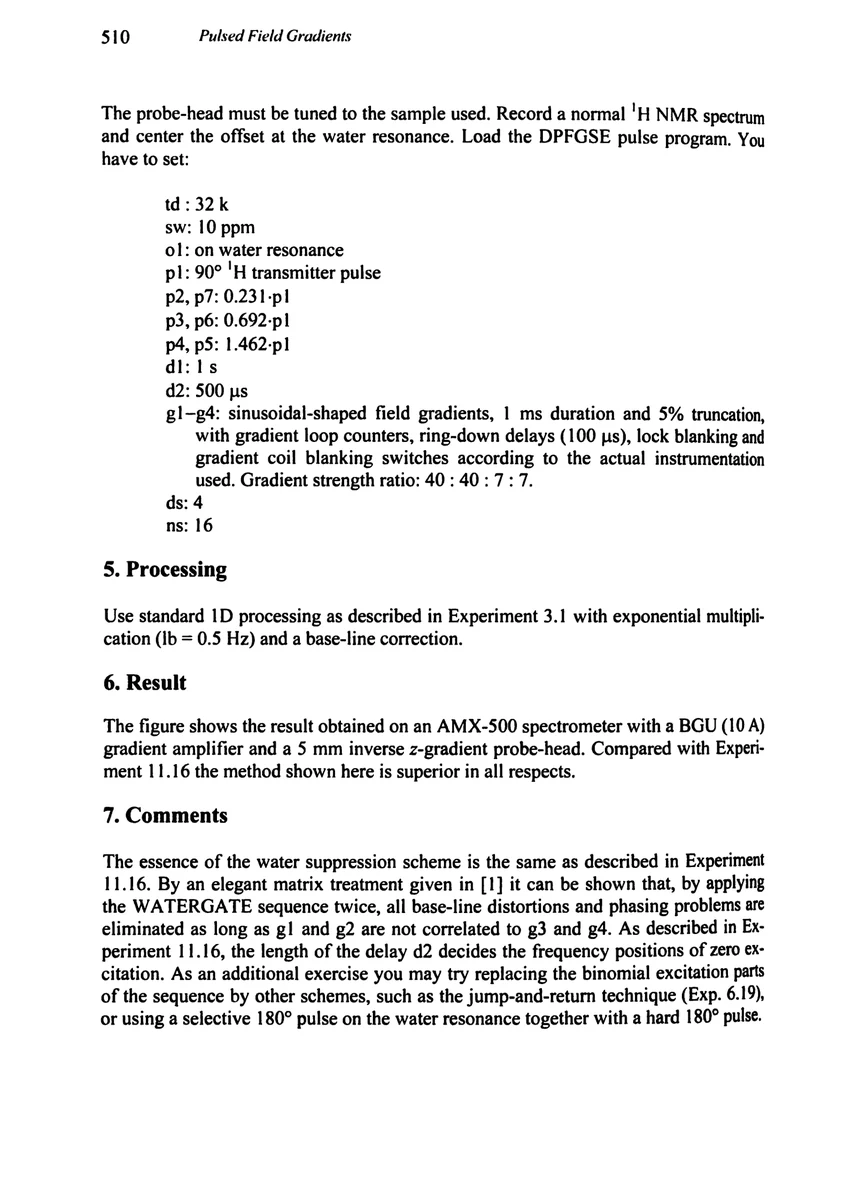

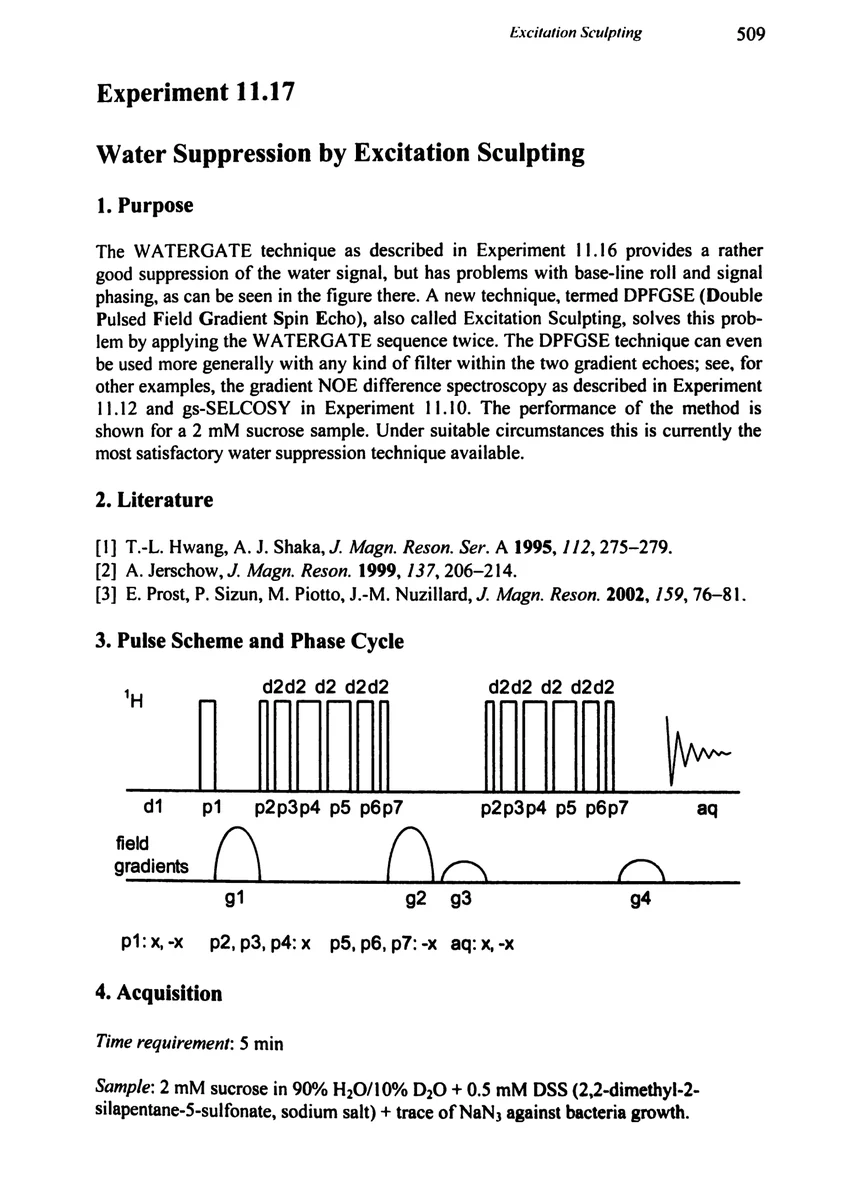

The probe-head must be tuned to the sample used. Record a normal ¹H NMR spectrum and center the offset at the water resonance. Load the DPFGSE pulse program. You have to set:

td: 32k sw: 10 ppm o1: on water resonance p1: 90° ¹H transmitter pulse d2: 500 μs g1–g4: sinusoidal-shaped field gradients, 1 ms duration and 5% truncation, with gradient loop counters, ring-down delays (100 μs), lock blanking and gradient coil blanking switches according to the actual instrumentation used. Gradient strength ratio: 40 : 40: 7: 7. ds: 4

5. Processing

Use standard 1D processing as described in Experiment 3.1 with exponential multiplication (lb = 0.5 Hz) and a base-line correction.

6. Result

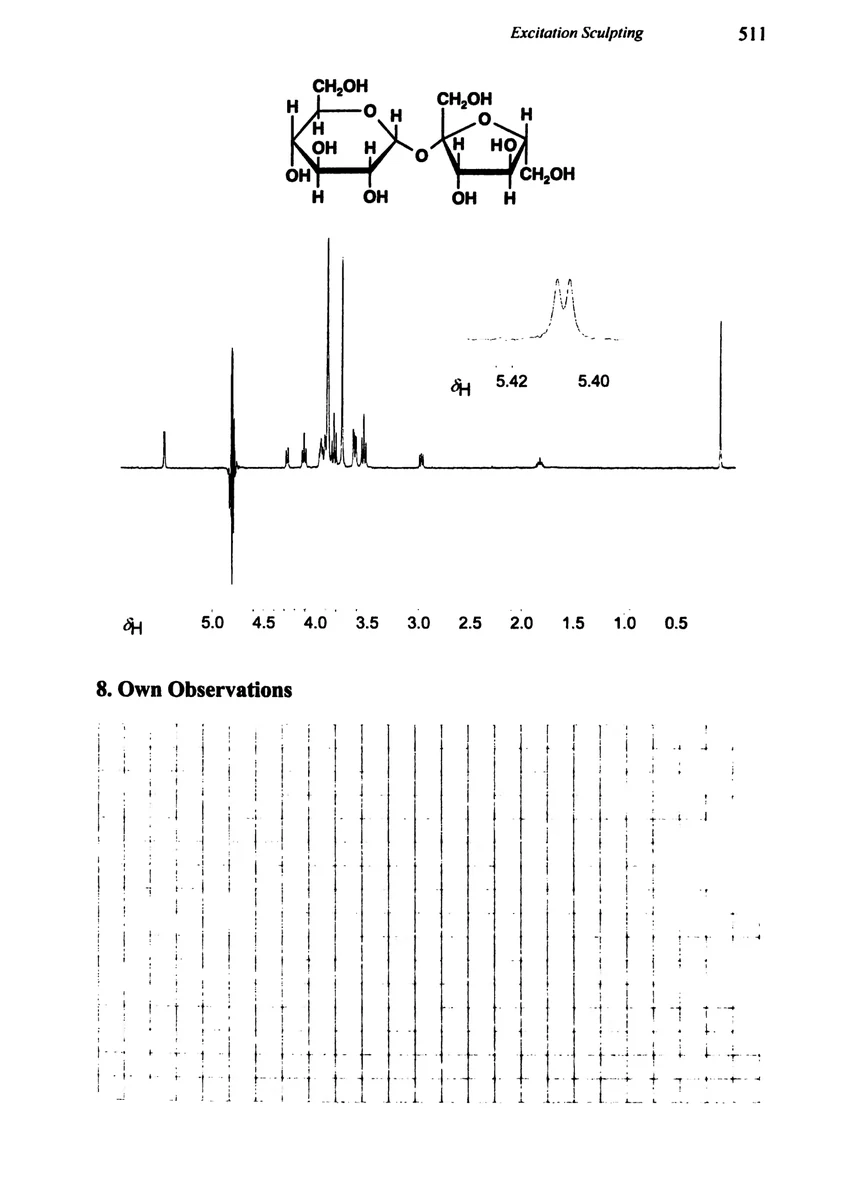

The figure shows the result obtained on an AMX-500 spectrometer with a BGU (10 A) gradient amplifier and a 5 mm inverse z-gradient probe-head. Compared with Experi- ment 11.16 the method shown here is superior in all respects.

7. Comments
